Michael Caldwell's Computer
A Work-In-Progress 2003-2004


CategorySpecs
Processor: PowerPC 7455 G4
Processor Speed: 1.33GHz
Motherboard: Apple Gigabit Ethernet
Cache: 64k L1, 256KB L2, 2MB L3
Data Path: 64 Bit
System Bus: 100 MHz
Weight: 30 lbs
Dimensions: 16¼" H x 8" W x 19" D
Ram: 1536 MB
Graphics Card: GeForce4 MX
Video Ram: 64 MB
Slots: 3 - 33MHz, 1 - 2x AGP
Hard Drive Bus: Ultra ATA/33
USB: 2 - 12 MBit/s, 5 - 480 MBit/s
FireWire: 3 - 400 MBit/s
Ethernet: 10/100/1000BaseT
Hard Drive: 250GB
Optical Drive: 16x12x10x40 CD-RW/DVD-ROM
Minimum OS: 8.5.1
Maximum OS: 10.x

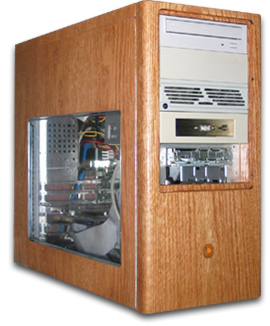

I initially created this computer in the summer of 2003. I have slowly been improving it, and also slowly finishing making the case pretty. I decided to make it out of wood. The sides and top are veneered, and the front is a solid piece of oak. My favorite feature is the button on the front. It is a piece of 3/4 inch dowel that was hollowed out, and had a white LED placed inside. The LED is on when the computer is on, and it pulses when the computer is asleep. I then put a thin layer of veneer over it, and it was then mounted on a button/switch. The LED shines through the veneer, and I think it looks pretty dang cool! Now i need to make a door to cover those unsightly drive bays...
